Tapping machines are specialized equipment used in the machining industry to create threaded holes in metal, plastic, or other materials. These machines are essential for producing high-precision threads in components that will be fastened or bolted together. The tapping process is crucial in manufacturing, and tapping machines have evolved over time to meet the growing demands for speed, efficiency, and accuracy.
In this article, we will delve into what tapping machines are, how they work, and the different applications where they play a vital role.
What is a Tapping Machine?
A tapping machine is a tool used to create internal threads by rotating a cutting tool, called a tap, into a pre-drilled hole. The tap is typically made from high-speed steel (HSS) or carbide, designed to withstand the stresses of cutting hard materials. Tapping machines can be used for both blind and through holes, making them versatile in various industrial applications.
These machines may be manual or automated, with automatic tapping machines being more common in mass production due to their speed and consistency. While tapping can also be done manually with hand tools, tapping machines offer increased precision and are far more efficient.
Types of Tapping Machines
There are several types of tapping machines used in modern machining processes, each designed for specific tasks.
These include:
Vertical Tapping Machines: These machines are used for tapping in a vertical direction. They are ideal for small- to medium-sized workpieces that require high accuracy.
Radial Tapping Machines: Radial tapping machines allow for the insertion of taps at various angles. These machines are more flexible and are suitable for tapping in hard-to-reach places.
CNC Tapping Machines: CNC (Computer Numerical Control) tapping machines use computer programming to precisely control the tapping process. These machines are the most accurate and are typically used in high-volume production environments where precision is paramount.
Manual Tapping Machines: These are simpler machines operated by hand. While they offer less automation, they are useful for small production runs or situations where low-volume work is required.
How Does a Tapping Machine Work?

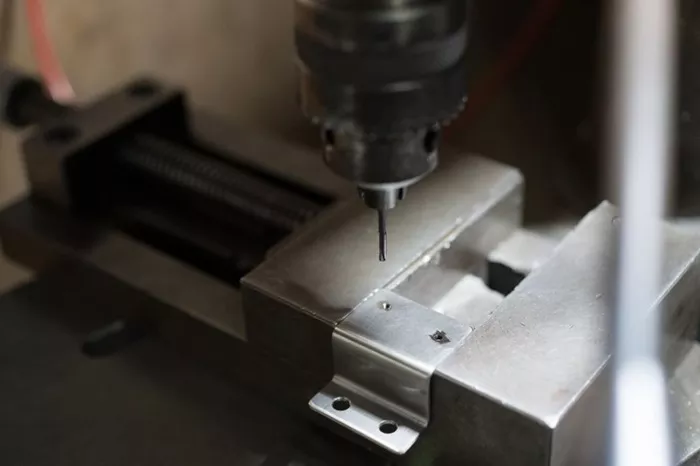

The working principle of a tapping machine is relatively straightforward. The process starts with a pre-drilled hole in the material. The tap is then inserted into the machine’s spindle and is rotated into the hole, cutting the internal thread.
The tapping machine’s main components include:
- Spindle: The spindle holds the tap and rotates it during the tapping process.
- Feed Mechanism: This part controls the movement of the tap into the material. It ensures the tap moves at the correct rate to create the desired thread.
- Tap Holder: The tap is securely held in this component, ensuring alignment with the hole and accurate threading.
- Motor: The motor powers the spindle and feed mechanism, enabling the machine to perform the tapping operation automatically or manually.
In automatic machines, sensors and controllers adjust the tapping speed and depth based on the material being worked on, ensuring consistent and precise threads.
Applications of Tapping Machines
Tapping machines are used in a wide range of industries.
Here are some common applications:
Automotive Industry: In automotive manufacturing, tapping machines are used to create threaded holes in engine parts, transmission components, and other mechanical systems. These threaded holes are crucial for fastening parts together and ensuring the overall integrity of the vehicle.
Aerospace Industry: Precision is critical in aerospace manufacturing. Tapping machines are used to produce high-quality threaded holes in aircraft parts, engine components, and structural assemblies. The ability to tap holes with high precision is essential for ensuring safety and performance.
Electronics Manufacturing: In the production of electronics, tapping machines create threaded holes in components such as circuit boards, connectors, and enclosures. The precise threading is important for securing parts and ensuring the reliability of electronic devices.
Construction and Machinery: Tapping machines are used to create threaded holes in components used in construction and heavy machinery. These threaded holes allow for the assembly of large structures and mechanical systems.
Medical Equipment: Tapping is also used in the production of medical devices and equipment. Components such as surgical instruments, diagnostic machines, and patient monitoring systems often require threaded holes to secure different parts together.
Advantages of Using Tapping Machines
Using tapping machines offers numerous benefits, especially in industries where high precision and efficiency are essential.
Here are some advantages:
- High Precision: Tapping machines can create threads with high accuracy, ensuring that components fit together perfectly.
- Speed: Tapping machines can perform the threading process much faster than manual methods, leading to higher production rates.
- Consistency: Automated tapping machines produce consistent results, which is vital for mass production and meeting quality standards.
- Cost-Effectiveness: While the initial investment in tapping machines can be high, their ability to speed up production and reduce human error results in cost savings over time.
Maintenance of Tapping Machines
Like any machinery, tapping machines require regular maintenance to keep them operating at peak efficiency.
Common maintenance tasks include:
- Cleaning: Dust, debris, and coolant residue can accumulate on the machine parts, leading to wear and reduced performance. Regular cleaning ensures smooth operation.
- Lubrication: The moving parts, such as the spindle and feed mechanism, need to be lubricated to prevent friction and wear.
- Inspection: Routine inspections should be conducted to ensure the tap is in good condition and that there are no misalignments or issues with the feed mechanism.
- Replacement of Worn Parts: Over time, the tap or other machine components may wear out and need to be replaced. Regular checks help detect issues early.
Choosing the Right Tapping Machine
When selecting a tapping machine for a particular application, several factors must be considered:
- Type of Material: The material being tapped will influence the choice of tapping machine. Harder materials may require machines with stronger motors and specialized taps.
- Thread Size and Depth: The size and depth of the threads required will affect the type of tap and machine used.
- Production Volume: High-volume production environments benefit from CNC tapping machines, while low-volume runs may be better suited for manual or simpler automated machines.
- Budget: Tapping machines come in a range of prices, from manual models to advanced CNC machines. Budget constraints will play a role in the decision-making process.
Future Trends in Tapping Machines
As manufacturing technology advances, tapping machines are becoming more sophisticated.
Some trends include:
- Automation: More tapping machines are being integrated into automated production lines, reducing labor costs and improving efficiency.
- IoT Integration: The Internet of Things (IoT) allows tapping machines to be connected to networks, enabling remote monitoring, diagnostics, and predictive maintenance.
- Advanced Materials: Tapping machines are being adapted to handle harder and more abrasive materials, expanding their application range.
- Precision and Speed: Ongoing advancements in machine design aim to improve both the precision and speed of tapping operations.
Conclusion
Tapping machines are indispensable in the manufacturing industry, offering speed, precision, and consistency in creating threaded holes. From automotive to aerospace and electronics, these machines are used across a variety of sectors. Whether manual or automated, tapping machines provide vital support for the production of high-quality components. As technology continues to evolve, tapping machines will likely become even more efficient, further enhancing their role in modern manufacturing.
