What Is a Surface Grinder Used For?

by sthv

Surface grinders are integral machines used in various industries, especially in precision engineering and metalworking. This article delves into their purpose, applications, and importance in the manufacturing and machining world. By understanding the function of a surface grinder, its key components, types, and how it contributes to a machine shop’s operations, readers can better appreciate its essential role in producing finely finished surfaces for industrial parts.

Understanding the Surface Grinder

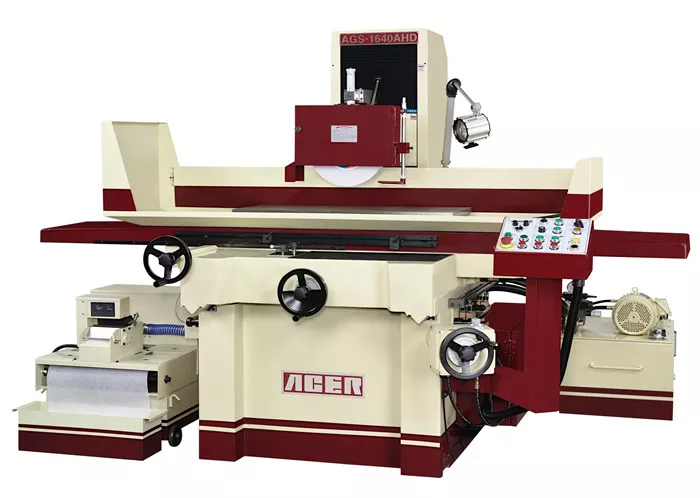

A surface grinder is a type of machine tool used to provide precision grinding of flat surfaces. The grinding wheel rotates at high speeds to smooth or finish the surface of an object, removing material in a controlled manner. The main goal is to improve the surface quality, dimensional accuracy, and smoothness of various workpieces, typically metal components.

Advertisements

This machinery is often used in industries such as aerospace, automotive, tool and die, and manufacturing, where high precision and surface finish are essential. The machine can produce parts with tolerances in the micron range, making it a key player in the production of components that need to meet strict specifications.

Advertisements

Basic Working Principle

A surface grinder operates on the principle of abrasive machining. It uses a rotating abrasive wheel to remove material from the surface of a workpiece. The workpiece is usually mounted on a magnetic chuck that holds it in place. The grinding wheel moves across the surface of the workpiece, either in a reciprocating motion or in continuous rotation. The grinding wheel’s high speed creates friction, which generates heat to remove layers of material, thereby smoothing the surface.

Advertisements

The grinding process is highly effective for reducing surface roughness and improving the flatness of parts. It can be applied to materials such as steel, aluminum, ceramics, and other metals that require high precision.

Advertisements

Key Components of a Surface Grinder

A surface grinder consists of several crucial components that work together to perform the grinding process effectively.

Some of these components include:

1. Grinding Wheel

The grinding wheel is the most essential part of the surface grinder. It is a circular disc made of abrasive particles that wear down as they remove material from the workpiece. The type of abrasive material in the grinding wheel determines the grinding efficiency, and it is selected based on the hardness and properties of the material being worked on.

2. Magnetic Chuck

A magnetic chuck is used to secure the workpiece during grinding. It holds the piece firmly in place to prevent any movement that could affect the accuracy of the grind. The magnetic chuck is particularly useful for ferrous materials, as it creates a strong magnetic field that keeps the part steady.

3. Crossfeed Mechanism

This component is responsible for the motion of the workpiece during grinding. The crossfeed mechanism moves the workpiece back and forth across the grinding wheel. It can be adjusted for different workpiece sizes and grinding speeds.

4. Table

The table supports the workpiece and is adjustable. It can move both vertically and horizontally to accommodate different grinding operations. The table also enables fine adjustments to ensure precise positioning of the workpiece.

5. Wheel Head

The wheel head houses the motor that drives the grinding wheel. It is typically mounted on a vertical axis and can move horizontally, which allows for adjustments in the grinding wheel’s position relative to the workpiece.

Types of Surface Grinders

There are several different types of surface grinders, each designed to meet specific grinding requirements.

The primary types include:

1. Horizontal Surface Grinders

Horizontal surface grinders are the most common type. They feature a horizontally rotating grinding wheel, which is used for grinding flat surfaces. The workpiece is mounted on the magnetic chuck, and the grinding wheel moves across the surface.

Horizontal grinders are suitable for high-volume production as they allow for fast material removal and consistent surface finishes. They are often used for precision grinding of smaller parts like gears, shafts, and flat plates.

2. Vertical Surface Grinders

In vertical surface grinders, the grinding wheel rotates vertically, and the workpiece is placed below the wheel. This type of grinder is commonly used for larger workpieces that require deep cuts or more complex grinding operations. Vertical grinders are also used when a greater level of precision is needed for both large and small parts.

3. Reciprocating Surface Grinders

Reciprocating surface grinders use a back-and-forth motion to move the workpiece across the grinding wheel. These grinders are used primarily for precision grinding on flat surfaces and are designed to provide high accuracy with minimal surface defects.

4. Cylindrical Surface Grinders

Cylindrical surface grinders are specialized machines designed for grinding cylindrical shapes. The workpiece rotates while the grinding wheel moves along the surface, creating a smooth, cylindrical finish.

These grinders are ideal for finishing the external surfaces of cylindrical components, such as shafts and pins, ensuring they meet tight tolerances.

Applications of Surface Grinders

Surface grinders are used in various industries for precision grinding tasks.

Some of the key applications include:

1. Precision Engineering

Surface grinders are essential for precision engineering tasks, where tight tolerances and smooth finishes are crucial. These machines help create highly accurate surfaces for parts that need to fit together seamlessly.

2. Tool and Die Manufacturing

In tool and die manufacturing, surface grinders are used to create precision molds, dies, and cutting tools. The smooth, precise surfaces they create are crucial for the proper functioning of the finished tools.

3. Automotive Industry

The automotive industry relies heavily on surface grinders to finish parts like engine blocks, pistons, and gears. Precision grinding ensures that these components meet the required specifications and perform efficiently under high-stress conditions.

4. Aerospace Industry

In aerospace manufacturing, surface grinders are used to finish parts like turbine blades, compressor rotors, and other critical components. These parts must meet strict tolerances and surface finish requirements to withstand the extreme conditions of aerospace applications.

5. Metalworking

Surface grinders are frequently used in metalworking for producing flat, smooth surfaces on metallic components. They are especially effective at removing burrs, rough edges, and imperfections from metal parts.

Advantages of Using Surface Grinders

Surface grinders offer numerous benefits in the machining process:

  • High Precision: Surface grinders can achieve incredibly tight tolerances, often within a few microns, making them essential for high-precision applications.
  • Improved Surface Finish: These machines provide an excellent surface finish, minimizing roughness and imperfections.
  • Versatility: Surface grinders can handle a wide variety of materials, including metals, plastics, and ceramics.
  • Cost-Effective: Surface grinding is an efficient process, especially for high-volume production. It reduces the need for additional finishing processes, saving time and cost.

Conclusion

Surface grinders are invaluable tools in modern manufacturing, providing high-precision finishing for a wide range of materials and components. Whether for small parts or large industrial applications, surface grinders help produce parts with exceptional surface quality and accuracy. Their versatility, combined with the ability to handle a variety of materials, makes them indispensable in industries such as automotive, aerospace, and tool manufacturing. Understanding how surface grinders work and their applications will ensure that manufacturers can harness their full potential for better-quality products.
