Pipe notching is a key process used in various engineering and construction projects. This technique involves creating precise cuts or notches in pipes to improve their fitting, strength, and overall functionality. In industries like construction, automotive, and manufacturing, pipe notching plays a crucial role in ensuring structural integrity and proper assembly of systems.
The process of pipe notching may seem simple, but it requires a deep understanding of the machinery used and the material properties of the pipes involved. Let’s explore the process in detail, how it’s done, and its importance in engineering.
What Is Pipe Notching?
Pipe notching refers to the process of cutting or shaping a section of a pipe, typically along its circumference, to create a notch. This is done to enable better joint fitting or to allow for certain adjustments when connecting pipes. The notches can vary in shape, size, and depth depending on the requirements of the project.
The primary purpose of pipe notching is to create a seamless connection between pipe segments, especially when the pipes need to align or fit within a constrained space. This process is crucial for industries like construction, where pipe systems are integral to building structures, HVAC systems, and other infrastructure.
Tools and Equipment Used for Pipe Notching
To perform pipe notching, engineers rely on various tools and machinery. The choice of tool depends on the material of the pipe, the size of the notch, and the precision required.
Some common tools and machines include:

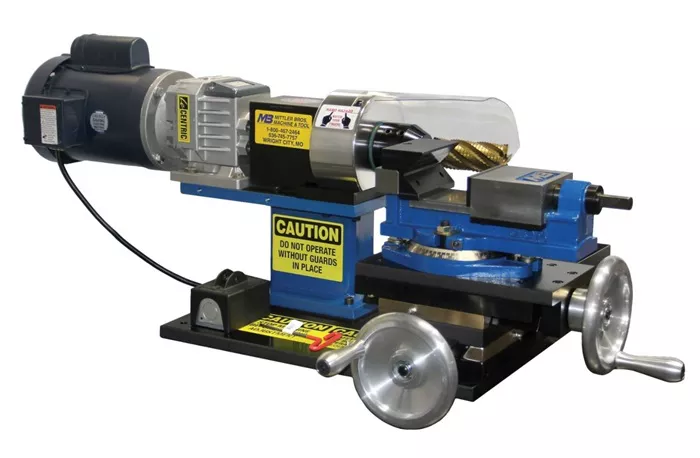

1. Pipe Notching Machines
These are specialized machines designed specifically for the purpose of notching pipes. They allow for high precision and speed, making them ideal for large-scale projects. The machine typically has adjustable settings to accommodate different pipe diameters and notch designs.
2. Angle Grinders
For smaller projects or when a pipe notching machine is unavailable, angle grinders can be used. This tool is often equipped with cutting discs to remove material from the pipe’s surface. While not as precise as a dedicated pipe notching machine, it can still deliver satisfactory results for less critical tasks.
3. CNC Machines
Computer Numerical Control (CNC) machines are another method used in advanced pipe notching. These machines are programmed to make precise cuts with high efficiency. They are widely used in industries requiring mass production and extremely accurate notching.
4. Bandsaws
Bandsaws are often used for pipe notching in situations that involve cutting through thicker pipes. This method ensures smooth and accurate cuts that can be further refined for notching. Bandsaws can handle a wide range of pipe materials, making them versatile for various applications.
5. Plasma Cutters
Plasma cutters are used in industrial settings where high-speed cutting is needed. The plasma cutter uses an ionized gas stream to make precise cuts in metals, including pipes. This tool is particularly effective when working with tough materials like steel or stainless steel.
Types of Pipe Notches
Pipe notches are created for various reasons, and the type of notch depends on the specific requirements of the task at hand.
Common types of pipe notches include:
1. End Notch
This is the most common type of notch and is typically found at the end of a pipe. End notches allow the pipe to fit snugly into another component, ensuring secure connections and preventing leaks.
2. Side Notch
Side notches are created along the side of a pipe, typically to accommodate joints or connectors. These notches are essential in making sure the pipe fits within a system and aligns correctly with other components.
3. V-Notch
V-notches are often used when precise alignment or a stronger joint is needed. The V-shape allows for a more secure fit between the pipe and the adjoining piece. These notches are commonly found in welding applications.
4. U-Notch
U-notches are similar to V-notches but with a rounded base. This type of notch is often used when the notch is expected to endure higher stress or when the fit needs to be more flexible.
5. T-Notch
A T-notch is often used to create a pipe fitting that looks like the letter “T.” This type of notch is helpful in applications that require strong support and alignment.
The Process of Pipe Notching
Pipe notching is a precise operation that requires both the right equipment and a good understanding of the material being worked with.
Here’s a step-by-step breakdown of how the process typically unfolds:
1. Material Selection
Before any notching can be done, the type of material used for the pipe is selected. Common materials include steel, aluminum, PVC, and copper. The material affects the tools and methods used for notching, as harder materials require stronger tools and more advanced techniques.
2. Measurement and Marking
Once the material is selected, the pipe is carefully measured to determine the location, shape, and size of the notch. Accurate measurements are critical, as even small mistakes can affect the performance of the final product.
The pipe is then marked to indicate where the notch will be made. Marking the pipe ensures the notch is placed at the correct location and is of the appropriate size and shape.
3. Setting Up the Machine
Next, the pipe is loaded onto the notching machine or tool. For machines like CNC machines, the operator will input the desired specifications, such as the notch size, depth, and angle.
For manual tools like grinders or saws, the operator will adjust settings accordingly to ensure the correct depth and type of notch.
4. Notching Process
The machine or tool is then activated to begin the notching process. In the case of machines, the tool head will move along the pipe, removing material to create the notch. The operator needs to monitor the process closely to ensure the notch is made precisely.
In manual operations, the operator uses tools like grinders or saws to cut into the pipe, following the marked lines. While the process is slower, it still allows for precise results.
5. Finishing Touches
After the notch has been created, it is often necessary to smooth out any rough edges. This is typically done using a deburring tool or grinder. This ensures the notch is clean and will fit perfectly into the required space or joint.
6. Inspection
Once the notching process is completed, the pipe is inspected to ensure the notch meets the necessary specifications. It is checked for accuracy in terms of size, shape, and positioning. Any discrepancies may require the process to be repeated or adjusted.
Applications of Pipe Notching
Pipe notching plays a vital role in several industries, including construction, automotive, HVAC, and manufacturing.
Here are some of the primary applications:
1. Structural Systems
In construction, pipe notching is used to create strong joints in structural systems. This ensures that pipes fit securely within frameworks, preventing any failure of the overall system.
2. HVAC Systems
HVAC systems often require precisely notched pipes to ensure proper alignment and functionality. Notched pipes are essential for making the right connections between various parts of the HVAC system, ensuring that air flows efficiently through the system.
3. Exhaust Systems
In the automotive industry, exhaust systems often involve notched pipes to create seamless joints between various components. The notches allow the pipes to be aligned and welded together more easily, ensuring optimal performance and durability of the exhaust system.
4. Plumbing Systems
Plumbing systems also make use of notched pipes to ensure pipes fit correctly in tight spaces or at specific angles. This can be crucial for preventing leaks and ensuring that plumbing systems function as intended.
5. Furniture Manufacturing
In the furniture industry, pipe notching is used to create strong, aesthetic joints for metal frames. This is often seen in modern furniture designs that use pipes as structural components.
Conclusion
Pipe notching is a fundamental process in many industrial and engineering applications. It plays a critical role in ensuring that pipes fit together properly and that joints are strong and secure. Understanding the tools, techniques, and types of notches is essential for anyone working with pipe systems in machinery or construction industries.
By mastering the process of pipe notching, engineers can create more efficient and durable systems that meet the specific needs of their projects. Whether you’re working on a large construction project, building an exhaust system, or designing furniture, pipe notching is an essential skill in the world of engineering.
