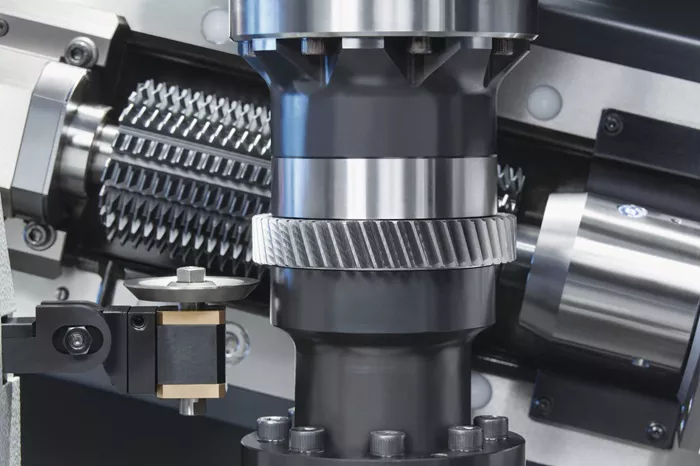

What is a Gear Hobbing Machine and How Does it Work?

by sthv

A gear hobbing machine is an essential tool in the manufacturing industry, used primarily to create gears with precision. It plays a critical role in the production of various gears, including spur gears, helical gears, and worm gears. Gear hobbing machines are capable of shaping a gear through the use of a specialized cutting tool known as a hob. This hob rotates in unison with the workpiece, gradually cutting into the material to form the desired gear profile.

Gear hobbing is one of the most efficient and cost-effective methods for mass production of gears, offering high precision and a relatively quick turnaround time. These machines are highly versatile and are used in many industries, including automotive, aerospace, and heavy machinery.

Advertisements

What is Gear Hobbing?

Gear hobbing is a machining process that uses a rotating cutting tool, called a hob, to cut the teeth of a gear. It works by continuously feeding the cutting tool into the material at a precise angle while both the hob and the workpiece rotate simultaneously. The rotation of the hob and the workpiece results in the creation of the gear teeth with great accuracy.

Advertisements

The main advantage of gear hobbing is its ability to produce gears of various sizes, shapes, and specifications with high precision. The process is also faster than traditional methods, making it ideal for high-volume production.

Advertisements

Types of Gear Hobbing Machines

There are several types of gear hobbing machines, each designed for specific gear types and production needs.

Advertisements

The most common types include:

Vertical Gear Hobbing Machines

These machines have a vertical spindle, which allows for better accessibility and ease of maintenance. They are often used for larger gears and can handle a variety of materials.

Horizontal Gear Hobbing Machines

In these machines, the spindle is placed horizontally. They are highly versatile and can be used to produce gears with different sizes and configurations. Horizontal machines are ideal for mass production.

CNC Gear Hobbing Machines

Computer Numerical Control (CNC) gear hobbing machines provide automated, high-precision cutting. They allow for more complex designs and greater flexibility in production. CNC machines are commonly used for producing gears in the automotive and aerospace industries.

Working Principle of a Gear Hobbing Machine

The working principle of a gear hobbing machine involves the simultaneous rotation of two components: the hob and the workpiece. The hob, which is a specialized cutting tool, is mounted on a spindle and rotates at high speed. The workpiece, which is the material to be cut, is placed on a worktable or fixture, and it also rotates in synchronization with the hob.

As the hob cuts into the workpiece, it gradually forms the gear teeth. The cutting process continues until the full set of teeth is created. The angle of the hob, the speed of rotation, and the feed rate are all adjusted to ensure that the teeth are cut to the desired specifications.

Advantages of Gear Hobbing Machines

Gear hobbing machines offer numerous advantages, making them a preferred choice in many industries:

High Precision and Accuracy

Gear hobbing machines are capable of producing gears with high levels of precision and consistency. The use of advanced technology ensures that the teeth are cut to the exact dimensions required.

Speed and Efficiency

Gear hobbing is a faster process compared to traditional gear cutting methods. This allows for quicker production times and increased output.

Versatility

These machines can be used to produce a wide variety of gears, including straight, helical, and spiral gears. The versatility of gear hobbing machines makes them suitable for multiple industries and applications.

Cost-Effectiveness

Since gear hobbing machines are highly efficient and capable of producing gears at a rapid rate, they help reduce production costs in mass manufacturing settings.

Applications of Gear Hobbing Machines

Gear hobbing machines are widely used in various sectors, especially in industries that require high-quality gears for their products.

Some of the primary applications include:

Automotive Industry

Gears are critical components in automotive applications. Gear hobbing machines are used to produce gears for engines, transmissions, and differentials, ensuring smooth operation and performance.

Aerospace Industry

In the aerospace industry, gears must be highly reliable and durable. Gear hobbing machines are used to manufacture precise gears for aircraft engines, landing gear systems, and other components.

Heavy Machinery

Gear hobbing machines play a significant role in the production of gears for heavy machinery, such as cranes, bulldozers, and mining equipment.

Industrial Equipment

Gears are crucial in the operation of industrial machinery, and gear hobbing machines are used to manufacture them with the necessary precision to handle heavy loads and high speeds.

Maintenance of Gear Hobbing Machines

Proper maintenance of gear hobbing machines is essential for ensuring their longevity and continued performance.

Regular maintenance tasks include:

Lubrication

Lubrication is crucial for reducing friction between moving parts. It helps extend the lifespan of both the hob and the workpiece, ensuring smooth operation.

Cleaning

Keeping the machine clean is vital to prevent the buildup of debris and dirt, which can affect its performance. Regular cleaning of the machine components, especially the spindle and worktable, is necessary.

Inspection and Calibration

Regular inspections should be conducted to check for any signs of wear or damage. Calibration of the machine is also essential to maintain accuracy in gear production.

Replacement of Worn Parts

Over time, certain parts of the machine, such as the hob, may wear out. These parts should be replaced promptly to avoid any interruptions in production.

Challenges and Limitations of Gear Hobbing Machines

While gear hobbing machines are highly efficient, they do have some limitations. One of the main challenges is that they may not be suitable for producing gears with very fine or complex profiles, which may require other specialized gear-cutting methods like gear shaping or broaching.

Additionally, the initial investment in gear hobbing machines can be high, and maintenance costs can add up over time. Despite these challenges, the advantages of gear hobbing machines often outweigh the drawbacks, especially for high-volume production runs.

Future of Gear Hobbing Machines

The future of gear hobbing machines looks promising, with ongoing advancements in automation, computer technology, and cutting tools. The integration of CNC technology has already made gear hobbing more precise and efficient, and future developments may further enhance the capabilities of these machines.

Additionally, the increasing demand for gears in industries like electric vehicles and renewable energy is expected to drive further innovation in the gear hobbing sector. Manufacturers are likely to focus on developing machines that can handle more complex gear profiles and operate with greater efficiency.

Conclusion

Gear hobbing machines are vital tools in the production of gears, offering high precision, speed, and versatility. They are used across various industries, including automotive, aerospace, and heavy machinery. By understanding the working principles, advantages, and applications of gear hobbing machines, businesses can optimize their manufacturing processes and produce high-quality gears that meet industry standards.
