The compressor serves as the heart of any refrigeration system, including household refrigerators. This critical component circulates refrigerant through the closed-loop system while increasing its pressure and temperature to facilitate heat exchange. Understanding what resides inside a refrigerator compressor requires examination of both its mechanical components and thermodynamic principles.

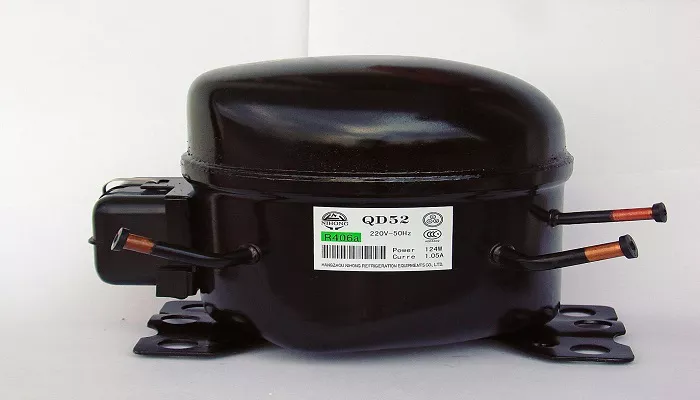

External Housing and Sealing System
- Steel casing: Typically 1.5-3mm thick, capable of withstanding internal pressures up to 30 bar
- Welded seams: Precision welding creates permanent, leak-proof joints
- Electrical feedthroughs: Glass or ceramic insulated terminals allow power connections while maintaining seal integrity
- Service valves: Some models include access ports for charging and servicing
The housing also serves as an oil sump, with the base containing lubricating oil that splashes or circulates to moving parts. Proper sealing ensures oil remains contained while preventing moisture ingress that could damage electrical components.
Electric Motor Components
The compressor’s driving force comes from an induction motor specifically designed for refrigeration applications. Key motor elements include:
Stator Assembly
- Laminated steel core: Reduces eddy current losses with thin insulated layers
- Copper windings: Multiple coils create rotating magnetic fields when energized
- Insulation materials: High-temperature polymers prevent short circuits
Rotor Design
- Squirrel cage construction: Aluminum or copper bars in laminated iron core
- Shaft integration: Single-piece design connects to compression mechanism
- Dynamic balancing: Minimizes vibration during operation
The motor operates on single-phase AC power (typically 115V or 230V) in household refrigerators, utilizing a start relay and overload protector for reliable operation. Motor efficiency ranges from 60-80% in modern units, with higher efficiency models incorporating advanced designs like ECM (electronically commutated motors).
Compression Mechanism Varieties
Reciprocating Piston Compressors
- Piston and cylinder: Precision-machined aluminum or steel components
- Connecting rod: Transforms rotational motion to linear piston movement
- Valve plate: Contains spring-loaded discharge and suction valves
- Clearance volume: Critical space affecting volumetric efficiency
Rotary Compressors
- Rolling piston: Eccentric rotor compresses against cylinder wall
- Vane type: Sliding vanes create compression chambers
- Stationary blade: Acts as seal between high and low pressure sides
Scroll Compressors
- Fixed scroll: Stationary spiral element
- Orbiting scroll: Moves in eccentric path without rotating
- Discharge port: Positioned at scroll center
The reciprocating design dominates household refrigerator applications due to its simplicity, reliability, and cost-effectiveness at smaller capacities (typically 1/8 to 1/3 horsepower).
Refrigerant Flow Path Components
Suction Side Elements
- Inlet tube: Connects to evaporator outlet
- Suction accumulator: Some models include this to prevent liquid slugging
- Suction valve: Check valve or reed valve configuration
Discharge Side Components
- Discharge valve: Typically a reed or flapper valve
- Muffler: Reduces pulsation and noise
- Discharge tube: Connects to condenser inlet
The flow path maintains proper directionality while minimizing pressure drops that would reduce system efficiency. Internal volumes are precisely calculated to optimize refrigerant flow rates.
Lubrication System Details
- Oil sump: Reservoir at compressor base holding 200-500ml of oil
- Splash lubrication: Rotating components dip into oil
- Centrifugal oil pump: In some designs, provides positive pressure lubrication
- Oil return passages: Channels directing oil to bearings and cylinders
- Wick or capillary feeders: For precise oil delivery in some models
Refrigerator compressors typically use synthetic alkylbenzene or polyester oils with viscosity ratings between ISO 10 and 32. The oil must remain miscible with refrigerant at all operating temperatures.
Protective and Control Devices
Internal Protectors
- Thermal overload: Bimetallic switch interrupts power during overheating
- Current-sensitive relay: Protects against locked rotor conditions
- Pressure relief valve: Mechanical safety for excessive pressure (in some models)
External Controls
- Start relay: Potential or current-type for motor starting
- Run capacitor: Improves efficiency in PSC (permanent split capacitor) designs
- Thermostat: Cycles compressor based on temperature demand
These components work together to prevent damage from electrical faults, loss of cooling, or refrigerant flow issues.
Materials and Manufacturing Considerations
- Housings: Low-carbon steel with corrosion-resistant coatings
- Moving parts: Precision-machined steel or aluminum alloys
- Bearings: Sintered bronze or specialized polymer composites
- Valves: Spring steel or composite materials for fatigue resistance
- Gaskets and seals: Nitrile rubber or fluoropolymer materials
Manufacturing processes emphasize precision tolerances (often within 0.01mm) for proper sealing and mechanical operation. Automated assembly ensures consistency in mass production.
Efficiency Considerations and Design Tradeoffs
Engineers balance multiple factors in compressor design
- Volumetric efficiency: Typically 60-85% in reciprocating compressors
- Isentropic efficiency: Measures deviation from ideal compression
- Motor efficiency: Imp2acts overall energy consumption
- Mechanical losses: Friction in bearings and seals
- Acoustic performance: Noise reduction versus cost
Modern designs emphasize energy efficiency through
- Improved valve designs reducing flow restrictions
- Precision machining minimizing internal leakage
- Advanced motor technologies like ECM
- Optimized internal volumes and flow paths
Failure Modes and Reliability Engineering
Common internal failure mechanisms include
- Electrical faults: Winding insulation breakdown, relay failures
- Mechanical wear: Bearing surfaces, piston rings, valve components
- Lubrication failures: Oil breakdown, refrigerant dilution, circulation issues
- Contamination: Moisture ingress, acid formation, particulate matter
Manufacturers employ various strategies to enhance reliability
- Accelerated life testing during development
- Fault-tolerant design features
- Robust material selection
- Precision manufacturing controls
- Protective devices as previously discussed
Refrigerant Compatibility Considerations
- Chemical compatibility: Materials resistant to refrigerant and oil mixtures
- Pressure characteristics: Component strength for expected operating ranges
- Temperature limits: Suitable for expected discharge temperatures
- Lubricity requirements: Bearing materials that work with refrigerant-lubricant mixtures
Recent transitions to R600a (isobutane) refrigerants have required design modifications due to its flammability and different thermodynamic properties compared to traditional R134a.
Noise and Vibration Control
Internal features reduce operational noise
- Balanced rotating assemblies: Minimize vibration at operating speeds
- Internal mufflers: Acoustic chambers dampen pressure pulsations
- Isolation springs: Decouple mechanical vibration from housing
- Anti-vibration mounts: External mounting minimizes noise transmission
Noise levels typically range from 35-50 dB for modern refrigerator compressors at one meter distance.
Maintenance and Service Considerations
- Diagnostics: Interpreting noise or performance issues
- Failure analysis: Determining root causes of malfunctions
- System servicing: Proper handling during refrigerant recovery/recharging
- Replacement: Selecting appropriate replacement units
Technicians use internal knowledge to evaluate whether compressor issues stem from mechanical, electrical, or systemic problems.
Future Trends in Compressor Technology
Emerging developments affecting compressor internals include
- Variable speed drives: Electronically controlled motors for better efficiency
- Linear compressors: Alternative designs with fewer moving parts
- Advanced materials: Self-lubricating composites, improved alloys
- Smart diagnostics: Integrated sensors for predictive maintenance
- Alternative refrigerants: Designs accommodating low-GWP options
These innovations continue to evolve the internal architecture of refrigerator compressors while maintaining the fundamental thermodynamic principles that make them work.
Conclusion
The refrigerator compressor represents a marvel of mechanical and electrical engineering packed into a compact, durable package. Its internal components work in precise harmony to circulate refrigerant, maintain pressure differentials, and enable heat transfer – all while operating reliably for years with minimal maintenance. Understanding what resides inside these ubiquitous but vital components provides appreciation for their design sophistication and informs proper selection, application, and troubleshooting practices. As refrigeration technology advances, compressor internals will continue evolving to meet ever-higher standards of efficiency, reliability, and environmental responsibility.
