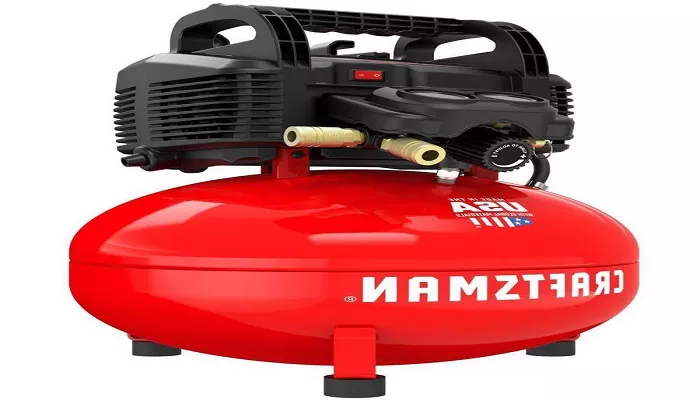

The Craftsman 6-Gallon Air Compressor is a versatile and reliable tool designed for both DIY enthusiasts and professionals. Whether you’re inflating tires, powering pneumatic tools, or performing light-duty construction work, this compressor provides consistent performance in a compact design.
Key Features of the Craftsman 6-Gallon Air Compressor
6-Gallon Tank Capacity: Ideal for intermittent use with nail guns, staplers, and inflatables.
Oil-Free Pump: Requires less maintenance than oil-lubricated models.
120V Electric Motor: Standard household power compatibility.
Maximum Pressure (PSI): Typically 150 PSI, suitable for most pneumatic tools.
Single-Stage Pump: Efficient for light to medium-duty tasks.
Portable Design: Compact with a handle for easy transport.
Regulator & Gauges: Allows precise pressure control.
Safety Precautions Before Use
Personal Safety Gear
Eye Protection: Wear safety glasses to prevent debris or air blast injuries.
Hearing Protection: Compressors can be loud; use earplugs or earmuffs.
Gloves & Proper Clothing: Avoid loose clothing that could get caught in moving parts.
Workspace Safety
Ventilation: Operate in a well-ventilated area to prevent overheating.
Stable Surface: Place the compressor on a flat, dry surface to avoid tipping.
Clearance Space: Keep at least 12 inches of space around the unit for airflow.
Electrical Safety
Proper Outlet: Use a grounded 120V outlet; avoid extension cords if possible.
Circuit Check: Ensure the circuit can handle the compressor’s amp draw.
No Wet Conditions: Never operate in rain or wet environments to prevent electric shock.
Pressure Safety
Never Exceed Max PSI: Check tool requirements and set pressure accordingly.
Release Pressure Before Servicing: Always depressurize the tank before maintenance.
Step-by-Step Setup Process
Unboxing & Inspection
- Remove all packaging materials.
- Check for shipping damage (dents, leaks, or loose parts).
Positioning the Compressor
- Place it on a stable, level surface near a power source.
- Ensure the area is clean and free of debris.
Attaching the Air Hose
- Use a high-quality 3/8-inch air hose (if not included).
- Connect one end to the compressor’s quick-connect coupler.
- Attach the other end to your pneumatic tool (if applicable).
Power Connection
- Plug the compressor into a dedicated 120V outlet.
- Avoid using extension cords (if necessary, use a heavy-duty cord).
Initial Tank Pressurization
- Turn the pressure regulator knob counterclockwise to the lowest setting.
- Turn the power switch to ON.
- Let the compressor fill the tank completely (until it automatically shuts off).
- Check for air leaks (listen for hissing sounds).
Maintenance for Longevity
Regular maintenance ensures peak performance and extends the compressor’s life.
Daily Checks
- Inspect hoses for cracks or leaks.
- Drain the tank after each use.
- Check oil levels (if applicable; most Craftsman models are oil-free).
Monthly Maintenance
- Clean air filters (remove dust and debris).
- Tighten loose bolts and fittings.
- Check belt tension (if belt-driven).
Annual Maintenance
- Replace worn seals or gaskets.
- Inspect the tank for rust (if rust is severe, replace the tank).
- Lubricate moving parts (if required by the manual).
Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor won’t start | No power, tripped breaker, faulty switch | Check outlet, reset breaker, test switch |
| Low pressure output | Leaking hose, clogged filter, faulty regulator | Tighten connections, clean/replace filter, adjust regulator |
| Excessive noise | Loose parts, motor issues, lack of lubrication | Tighten bolts, check motor bearings, lubricate if needed |
| Overheating | Poor ventilation, continuous use | Allow cooling breaks, improve airflow |
| Air leaks | Damaged fittings, loose connections | Replace O-rings, tighten fittings |
Conclusion
Whether you’re a contractor, mechanic, or DIYer, mastering this compressor will improve your workflow and ensure reliable results. Always refer to the user manual for model-specific details, and perform regular maintenance to keep it running smoothly for years.
