In a world where a constant power supply is crucial for everything from keeping homes comfortable to ensuring industrial operations run smoothly, diesel generators stand as reliable powerhouses. But have you ever stopped to wonder about the intricate processes that allow these machines to transform fuel into the electricity we rely on? Let’s embark on a detailed exploration of how a diesel generator functions, from the moment fuel enters the system to the delivery of electrical power.
The Fuel System: The Starting Point
Fuel Storage & Transport

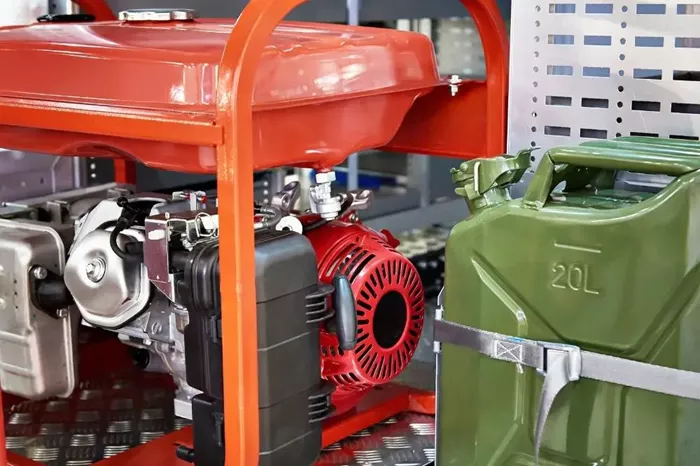

Every diesel generator has a fuel tank, which acts as the reservoir for the diesel fuel. The size of this tank can vary widely, depending on the generator’s intended use and the duration it’s designed to operate without refueling. When the generator is activated, a fuel pump kicks in. This pump, which can be either mechanical or electric, draws diesel fuel from the tank and sends it through a network of fuel lines towards the engine. Along the way, fuel filters are hard at work. They catch any dirt, debris, or impurities present in the fuel. Clean fuel is essential because even the smallest particle can damage the engine’s sensitive components, like the fuel injectors.
Fuel Injection Process
Once the fuel reaches the engine, the injection stage begins. In contemporary diesel engines, common – rail fuel injection systems are prevalent. Here’s the process: the fuel is pressurized to extremely high levels. Then, at the optimal moment, it’s precisely injected into the engine’s combustion chamber. The engine’s control unit carefully manages both the injection timing and the quantity of fuel injected. This precise control ensures that the fuel mixes perfectly with the air inside the chamber, laying the groundwork for efficient combustion.
The Air System: Essential for Operation
Air Filtration & Intake
Just as living beings need clean air to survive, diesel generators require clean air to function properly. An air filter at the air intake is responsible for removing dust, pollen, and other particles from the incoming air. The filtered air then enters the engine via the intake manifold. The amount of air that enters is regulated according to the engine’s load and speed requirements. As the engine runs, a continuous stream of clean air is drawn in, ready to combine with the injected fuel.
Compression Inside the Cylinders
Inside the engine cylinders, the air undergoes a compression process. The movement of the pistons forces the air into a smaller and smaller space, significantly increasing its pressure and temperature. Diesel engines rely on high compression ratios. In fact, the compression heats the air to such a degree that when diesel fuel is injected, it ignites spontaneously, unlike gasoline engines that rely on spark plugs for ignition. The high – temperature and high – pressure environment created by compression are fundamental to the subsequent combustion process.
Combustion & Power Generation: The Core Process
Ignition & Combustion Events
When the pressurized fuel is injected into the hot, compressed air, it immediately ignites. This combustion causes the gases within the cylinder to expand rapidly. The force generated by these expanding gases pushes the piston downward. This simple yet powerful movement is where the conversion of the fuel’s chemical energy into mechanical energy takes place. The downward movement of the piston is transferred to the engine’s crankshaft through a connecting rod. The crankshaft then converts this linear motion of the piston into rotational motion.
Transfer of Mechanical Energy
The rotational motion of the crankshaft represents the main mechanical output of the diesel engine. But how does this motion translate into electrical power? A coupling mechanism connects the crankshaft to the generator’s alternator. As the crankshaft rotates, it drives the alternator’s rotor, setting the stage for the transformation of mechanical energy into electrical energy.
Electrical Generation: Producing the Power
How the Alternator Works
The alternator is where the magic of electricity generation occurs. It consists of two main components: a rotor, which creates a rotating magnetic field, and a stator, which is a stationary set of wire windings. As the rotor spins, driven by the engine’s crankshaft, it generates a changing magnetic field around the stator. According to the principle of electromagnetic induction, this changing magnetic field induces an electric current in the stator windings. The result is the production of alternating current (AC), the standard form of electricity used in most homes and industries.
Maintaining Stable Voltage
To ensure that the generated electricity is at a stable and usable voltage, diesel generators are equipped with voltage regulators. These regulators continuously monitor the output voltage of the alternator. If the voltage deviates from the desired level, the regulator intervenes. It adjusts the strength of the magnetic field in the alternator, controlling the electrical output and maintaining a consistent voltage suitable for powering connected devices.
Delivering Power to the Load
Once the electricity is generated and regulated, it’s ready to be distributed. The generator has output terminals or sockets where electrical cables can be connected. These cables link the generator to the electrical devices or systems that require power, providing the necessary energy to keep them running.
Cooling and Exhaust Systems: Keeping the Generator in Check
Engine Cooling Mechanisms
Diesel engines generate a substantial amount of heat during operation. To prevent overheating, a cooling system is essential. There are two primary types of cooling systems: air – cooled and liquid – cooled. In air – cooled systems, fins on the engine block increase the surface area, facilitating heat dissipation into the surrounding air. Fans may also be used to enhance air circulation. Liquid – cooled systems, on the other hand, use a coolant, usually a mixture of water and antifreeze. This coolant circulates through passages in the engine block, absorbing heat. The heated coolant then flows to a radiator, where it releases the heat to the air before returning to the engine to continue the cycle.
Managing Exhaust Gases
As the fuel burns in the engine, exhaust gases are produced. These gases, which include carbon dioxide, water vapor, and other byproducts, need to be removed from the engine. The exhaust system handles this task. It starts with the exhaust manifold, which collects the gases from each cylinder. The gases then travel through an exhaust pipe, often passing through a muffler. The muffler reduces the noise generated by the exhaust gases, making the generator’s operation quieter. Finally, the exhaust gases are released into the atmosphere through an exhaust outlet.
Control & Monitoring: Ensuring Smooth Operation
The Function of the Control Panel
Diesel generators are equipped with control panels that allow operators to manage the machine. The control panel features switches for starting and stopping the generator. It also has indicators that display important information, such as the engine speed, voltage output, and fuel level. Some advanced control panels even offer diagnostic functions. These can detect potential issues, like low oil pressure or high engine temperature, and alert the operator.
Safety Features in Place
To guarantee safe operation, diesel generators come with various safety features. Automatic shutdown systems are common. For instance, if the oil level drops too low, the engine will stop to prevent damage due to lack of lubrication. Similarly, if the engine overheats, the generator will shut down to avoid serious failure. These safety features protect both the generator and the people using it from potential hazards.
Conclusion
In summary, a diesel generator is a complex yet fascinating piece of machinery. It converts the energy stored in diesel fuel into electrical power through a series of interconnected processes. From the careful management of fuel and air intake to the precise combustion that generates mechanical energy, and finally, the conversion of that energy into electricity, each step is vital. The cooling and exhaust systems work to keep the engine operating within safe parameters, while the control and monitoring features ensure smooth and safe operation. Understanding how a diesel generator works not only gives us a deeper appreciation for this essential power source but also enables us to use and maintain it more effectively, ensuring it’s ready to provide reliable power whenever needed.
