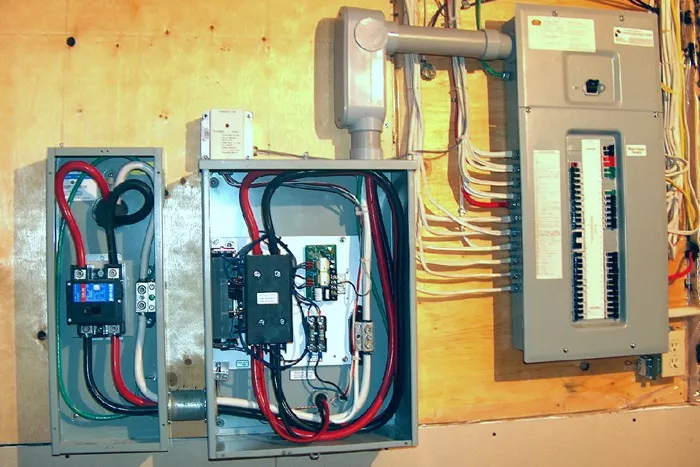

Installing a transfer switch for a whole house generator is a crucial step in ensuring that your home can seamlessly switch from grid power to generator power during outages. This guide will walk you through the wiring process step-by-step, ensuring your system is safe, efficient, and compliant with local codes.
Understanding the Purpose of a Transfer Switch
A transfer switch serves as a critical component in the electrical system of a home equipped with a generator. Its primary function is to safely disconnect your home from the utility grid and connect it to the generator during a power outage. This not only protects your appliances and the generator itself but also ensures that power is not fed back into the grid, which can pose serious hazards to utility workers.
When a power outage occurs, you can manually switch to generator power without having to plug appliances into the generator itself. This convenience is particularly important for maintaining the operation of essential systems such as heating, refrigeration, and medical equipment.
Types of Transfer Switches
Before wiring your transfer switch, it’s essential to understand the different types available. The two primary types of transfer switches are manual and automatic.
Manual Transfer Switches
Manual transfer switches require human intervention to switch the power source. These switches typically come with a set of circuits that you want to power during an outage. You will need to physically flip a switch to redirect power from the grid to the generator.
Automatic Transfer Switches
Automatic transfer switches (ATS) monitor the utility power supply continuously. In the event of a power outage, the ATS automatically disconnects the home from the grid and connects it to the generator. This type of transfer switch is ideal for those who desire convenience and cannot afford to be without power for even a short time.
Choosing the Right Transfer Switch
The selection of a transfer switch depends on your generator’s power output and the appliances you wish to power. You will need to determine the total wattage of the appliances you plan to run and select a transfer switch that can handle that load. Transfer switches come in various amperage ratings, typically ranging from 30 to 200 amps. Ensure that your transfer switch is compatible with your generator’s output.
Tools and Materials Needed for Wiring
Before you begin the wiring process, gather the necessary tools and materials:
- Transfer switch kit (including the switch and mounting hardware)
- Generator (rated for your desired load)
- Electrical wire (appropriate gauge for your application, usually 10 or 12 gauge)
- Circuit breaker (matching the amperage of the transfer switch)
- Wire connectors (for secure connections)
- Conduit (if required by local codes)
- Drill and drill bits
- Screwdriver
- Wire stripper
- Multimeter (for testing)
- Safety gear (gloves, goggles, etc.)
Safety Precautions
Safety is paramount when working with electrical systems. Follow these essential precautions:
- Always turn off the main power before beginning installation.
- Use insulated tools and wear rubber-soled shoes to minimize shock risk.
- Ensure proper grounding of all equipment.
- Consult local electrical codes and regulations, and consider hiring a licensed electrician if you are unsure about any part of the process.
Step-by-Step Guide to Wiring a Whole House Generator Transfer Switch
Wiring a transfer switch requires careful attention to detail. Follow these steps for a successful installation:
Step One: Prepare the Installation Site
Choose a location for your transfer switch that is easily accessible and close to your generator and main electrical panel. Ensure there is enough space to work comfortably and that the area is free from any obstructions.
Step Two: Turn Off the Power
Before starting any electrical work, locate your main circuit breaker and turn off the power supply to your home. This step is critical to ensure your safety while working on the electrical system.
Step Three: Mount the Transfer Switch
Using a drill, mount the transfer switch to the wall according to the manufacturer’s instructions. Ensure that it is securely fastened and level.
Step Four: Run the Electrical Wiring
A. Connecting to the Main Panel
- Locate the Breaker Panel: Open the cover of your main electrical panel. Identify the breakers that supply power to the circuits you want to connect to the generator.
- Cut the Power: Ensure the breakers are turned off.
- Drill Access Holes: If needed, drill holes for the conduit that will carry the wires from the transfer switch to the main panel.
- Feed Wires: Run appropriate gauge wire (usually 10 or 12 gauge) from the transfer switch to the main panel. Make sure to account for the distance between the two.
- Connect Wires: Strip the ends of the wires and connect them to the designated terminals on the transfer switch. Follow the wiring diagram included with your transfer switch to ensure proper connections.
B. Connecting to the Generator
- Install a Generator Inlet Box: Mount the generator inlet box outside your home, close to where the generator will be placed. This box will allow you to plug in the generator.
- Run the Wire to the Inlet Box: Feed wire from the transfer switch to the generator inlet box, ensuring it is protected by conduit if required.
- Connect the Wires: Strip the wire ends and connect them to the inlet box terminals as per the manufacturer’s instructions.
Step Five: Install Circuit Breakers
- Choose the Correct Breakers: Use circuit breakers that match the amperage rating of the transfer switch. Install these breakers in the main panel for the circuits you plan to power with the generator.
- Connect Circuit Wires: Strip and connect the circuit wires from the transfer switch to the newly installed breakers.
Step Six: Grounding
- Check Grounding Requirements: Ensure that both the generator and transfer switch are properly grounded according to local codes.
- Connect Ground Wires: Use appropriate ground wire to connect the generator to the grounding system of your home.
Step Seven: Final Checks
- Inspect Connections: Double-check all connections for tightness and proper placement.
- Test Voltage: Use a multimeter to ensure the voltage is correct at the transfer switch and inlet box.
- Close the Panels: Replace the covers on both the main panel and the transfer switch.
Step Eight: Testing the System
- Reconnect Power: Turn the main power back on and test the circuits connected to the transfer switch.
- Run the Generator: Start the generator and plug it into the inlet box. Switch the transfer switch to the generator position.
- Verify Operation: Check the circuits to ensure they are receiving power from the generator.
Maintenance of Your Transfer Switch
Regular maintenance is essential to ensure the longevity and reliability of your transfer switch. Here are some tips:
- Periodic Inspections: Check connections and wiring for signs of wear or corrosion.
- Test the System Regularly: Run your generator and test the transfer switch at least once a year.
- Keep the Area Clean: Ensure the installation area is free from dust and debris, which can hinder performance.
See also: 5 Best Whole-House Generator Systems
Conclusion
Wiring a whole house generator transfer switch is a vital skill that empowers homeowners to maintain their power supply during outages. By understanding the purpose of the transfer switch, selecting the right type, and following the proper wiring procedures, you can ensure a safe and effective installation. Remember to prioritize safety, adhere to local codes, and perform regular maintenance on your system for optimal performance.
With the right knowledge and careful planning, you can enjoy peace of mind knowing that your home will remain powered even when the grid goes down.
FAQs:
How long does it take to install a transfer switch?
The installation of a transfer switch can take anywhere from a few hours to a full day, depending on your experience level and the complexity of your home’s electrical system.
Can I install a transfer switch myself?
While it is possible to install a transfer switch yourself, it is highly recommended to hire a licensed electrician to ensure safety and compliance with local codes.
What happens if I forget to turn off the main breaker before using the generator?
Failing to turn off the main breaker can result in backfeeding electricity into the grid, posing serious safety hazards to utility workers and potentially damaging your generator.
Are automatic transfer switches worth the investment?
Automatic transfer switches offer convenience and peace of mind, making them a worthwhile investment for homeowners who want uninterrupted power during outages.
Do I need a permit to install a transfer switch?
In most cases, you will need a permit to install a transfer switch, as it involves significant electrical work. Always check with your local building authority for specific requirements.
How do I know if my generator is compatible with my transfer switch?
Check the specifications of both your generator and transfer switch to ensure they match in terms of wattage and voltage requirements. Always consult the manufacturer’s guidelines for compatibility.
