The push for renewable energy technology continues to grow as the world strives to combat climate change and reduce reliance on fossil fuels. In response to this urgent need, two American companies have teamed up to create the largest solar thermal facility in the world: the Ivanpah Solar Electric Generating System (ISEGS). Its mission is to harness solar power and generate large amounts of clean, renewable energy.
Harnessing Sunlight with Advanced Heliostat Technology

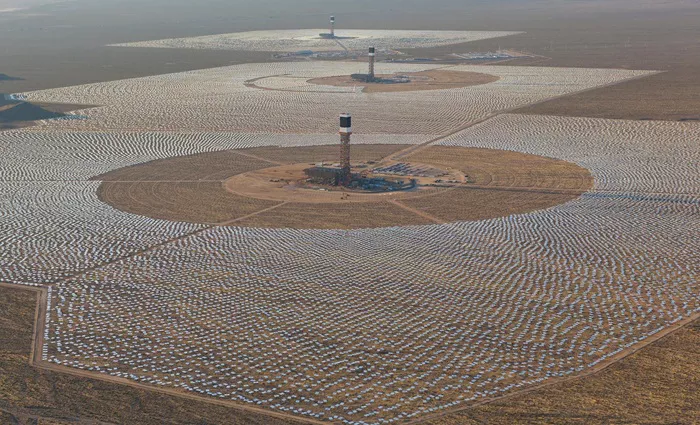

Developed by BrightSource Energy and Bechtel, with support from NRG Energy and Google, the ISEGS is located in the Mojave Desert, at the base of Clark Mountain in southern California. The facility spans roughly 3,500 acres and stands 459 feet tall.
The system consists of three solar units—Power Plant 1, Power Plant 2, and Power Plant 3. Each unit captures sunlight to produce electricity, with each plant differing in size and output capacity. Each unit is equipped with a heliostat array and receiver to concentrate sunlight and convert it into energy.
Power Plant 1 features 53,500 heliostats and generates up to 120 MW, while Power Plants 2 and 3 each have 60,000 heliostats and produce 133 MW each. Together, ISEGS generates a total of 386 megawatts from 173,000 heliostats, or 347,000 mirrors, which focus sunlight onto receivers at the top of central towers to produce usable energy.
Steam Turbines Power the Energy Conversion Process
Each solar unit contains a Rankine-cycle reheat steam turbine. When sunlight is captured by the receivers, it is converted into heat, which boils water to create steam. This steam powers the turbines, generating electricity that can supply power to thousands of homes and businesses.
To maintain optimal performance, each unit is equipped with two natural gas-fired steam boilers. These boilers help ensure continued energy production, especially during low sunlight or cloudy weather.
The facility also uses dry cooling systems to minimize water use, restricting it to a combined total of 100 acres of water annually for plant operations.
A Transformative Step for Renewable Energy
Opened in February 2014, ISEGS has since been recognized as a milestone in the renewable energy sector. Tom Doyle, president of NRG Energy, emphasized the facility’s potential to reshape the energy landscape, showing that large-scale solar power is not only feasible but also beneficial for the economy and energy consumption.
ISEGS now generates enough electricity to power around 140,000 California households. Its design ensures that surrounding vegetation remains unaffected during operation, and air-cooled condensers are used to convert steam back into water, conserving water resources in the desert.
In addition to generating power, ISEGS sets an important precedent for sustainability efforts worldwide. The collaboration between NRG Energy, Google, and other partners highlights a growing commitment to green technology, sparking innovation in the field of renewable energy.
