Permanent Magnet Generators (PMGs) are increasingly popular in various applications, especially where reliability, compactness, and efficiency are crucial. From renewable energy systems to small-scale industrial equipment, PMGs are often preferred for their simple yet effective design. This article will delve into how PMGs work, breaking down their components, principles of operation, and common uses.
Introduction to Permanent Magnet Generators

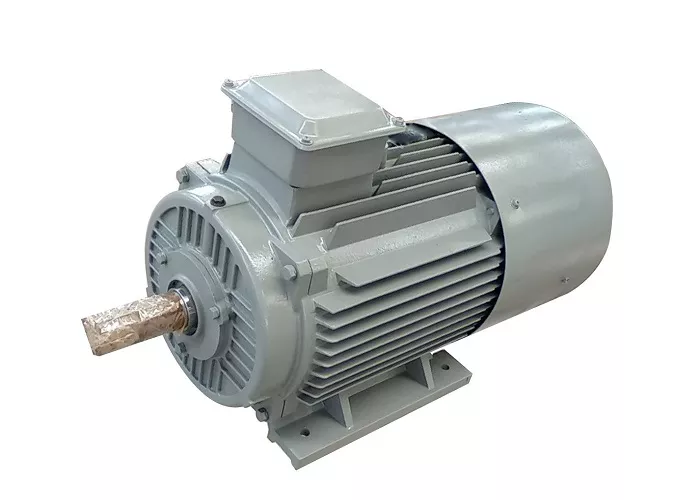

A Permanent Magnet Generator (PMG) is a type of electrical generator that utilizes permanent magnets to create a magnetic field, eliminating the need for a traditional electromagnet. In this design, a rotor (the rotating part of the generator) is equipped with permanent magnets, while the stator (the stationary part) consists of wire windings that produce electricity as the rotor spins.
PMGs are known for being highly efficient and having a long service life, with fewer parts subject to wear and tear compared to traditional generators that use electromagnets. They are commonly used in a variety of applications, including wind turbines, hydroelectric systems, and small-scale backup power generators. In the following sections, we will explore the key aspects of how these generators function and the advantages they offer.
Key Components of a Permanent Magnet Generator
To understand how a PMG works, we must first take a look at its basic components. These components are critical to its operation and contribute to its high efficiency.
Rotor (The Rotating Part)
The rotor is the part of the generator that rotates. In a PMG, the rotor is fitted with permanent magnets, which are materials that naturally produce a magnetic field without needing an external power source. The magnets are usually mounted on a rotor shaft, which is connected to a mechanical power source (like a turbine or engine) that drives the rotation.
As the rotor spins, it generates a rotating magnetic field. The speed at which the rotor turns directly influences the frequency and the voltage of the electricity produced by the generator.
Stator (The Stationary Part)
The stator is the stationary part of the generator. It contains coils or windings of wire that are arranged in such a way as to create a circuit for the flow of electricity. When the rotating magnetic field from the rotor passes through these coils, it induces an electric current in the wires due to electromagnetic induction.
The stator is typically made of laminated iron cores to help enhance the magnetic field’s strength and reduce energy losses due to eddy currents. The arrangement of the coils and their placement in relation to the rotor’s magnets play a significant role in determining the output voltage and current of the generator.
Bearings and Shaft
The shaft is the central component that connects the rotor to the mechanical power source. It transmits the rotational motion to the rotor. Bearings are used to reduce friction and allow smooth rotation of the rotor. In a PMG, the shaft and bearings are designed to minimize mechanical losses and ensure the longevity of the generator.
Housing and Cooling System
The generator is housed in a casing to protect the internal components from dust, moisture, and other environmental factors. Additionally, PMGs may have cooling systems such as fans or liquid cooling mechanisms to prevent overheating during operation, which helps maintain optimal efficiency.
Basic Working Principle of a Permanent Magnet Generator
The fundamental principle behind how a PMG works is electromagnetic induction, a process first discovered by Michael Faraday in the 19th century. According to Faraday’s law of induction, when a magnetic field around a conductor (such as the wire in the stator) changes, an electrical current is generated in that conductor.
In a PMG, the rotor, with its permanent magnets, rotates within the stator. As the rotor turns, the magnetic field created by the permanent magnets cuts through the coils in the stator. This changing magnetic field induces a voltage in the stator coils, which then drives the flow of electrical current. The faster the rotor spins, the greater the rate of change in the magnetic field, leading to higher voltage and current output.
The output of a PMG is typically alternating current (AC), although modifications can be made to produce direct current (DC) in certain applications.
Key Advantages of Permanent Magnet Generators
There are several reasons why Permanent Magnet Generators are preferred over other types of generators. Let’s look at some of the main benefits.
High Efficiency
PMGs are known for their high efficiency, particularly at low speeds. Since the rotor uses permanent magnets, it does not require additional electrical power to generate the magnetic field, which reduces losses. This means that more of the input mechanical energy is converted into electrical energy. This makes PMGs an excellent choice for renewable energy applications like wind turbines, where efficiency is crucial to ensure optimal energy generation.
Compact Design
Without the need for a separate electromagnet, PMGs tend to have a more compact design compared to traditional generators. This makes them suitable for applications where space is limited. Their smaller size also makes them easier to maintain and install, especially in portable power systems.
Lower Maintenance
Because they lack brushes and slip rings (components used in traditional generators to deliver power from the rotating rotor to the stationary stator), PMGs experience less wear and tear. This results in lower maintenance costs and longer operational lifespans. In environments where maintenance may be challenging, such as offshore wind turbines, PMGs are highly beneficial.
Reliability
Since PMGs use permanent magnets, they do not rely on external electrical power sources or complex control systems. This leads to more stable and reliable operation over time. As a result, PMGs are ideal for off-grid applications and backup power generation systems where reliability is paramount.
Types of Permanent Magnet Generators
Permanent Magnet Generators come in various designs and configurations, depending on the application. These can be broadly classified into two categories: radial flux PMGs and axial flux PMGs.
Radial Flux PMGs
Radial flux PMGs are the most common type, where the magnetic field flows radially from the center of the rotor to the stator. In this design, the rotor and stator are arranged concentrically, and the magnetic flux flows outward from the rotor’s center, perpendicular to the rotor shaft. Radial flux PMGs are widely used in applications such as wind turbines, hydroelectric generators, and small-scale power systems.
Axial Flux PMGs
Axial flux PMGs, also known as disk generators, have a different design where the magnetic flux flows parallel to the axis of rotation. The rotor and stator in axial flux PMGs are typically arranged in a flat, disk-like configuration. These generators are more compact and lightweight, making them suitable for portable power generation and electric vehicle applications.
Applications of Permanent Magnet Generators
Permanent Magnet Generators are used in various industries and applications due to their unique features. Let’s explore some of the most common areas where PMGs are deployed.
Wind Turbines
Wind turbines often use PMGs because they can generate electricity efficiently at lower wind speeds. The rotor’s permanent magnets work well with the slow rotation speeds common in wind energy systems, and the compact design is ideal for the space constraints of modern wind turbine setups.
Hydroelectric Power Systems
In small-scale hydroelectric power systems, PMGs are used to convert the energy from flowing water into electricity. Due to their high efficiency and low maintenance requirements, PMGs are perfect for these remote and off-grid applications.
Backup Power Systems
Permanent Magnet Generators are increasingly used in backup power systems for homes and businesses. Their reliable performance and low maintenance make them an excellent choice for providing emergency power during outages.
Electric Vehicles
In electric vehicles (EVs), PMGs are used in the power generation systems that recharge the batteries or power auxiliary systems. Their compactness and efficiency make them well-suited for use in EV motors, providing both propulsion and auxiliary power.
Marine Applications
The durability and reliability of PMGs make them ideal for marine applications, including powering small vessels, off-shore platforms, and naval operations. The ability to generate electricity efficiently even in harsh environments is one of the reasons why PMGs are so commonly used in these applications.
Conclusion
Permanent Magnet Generators (PMGs) offer a highly efficient and reliable solution for generating electricity across a wide range of applications. By utilizing permanent magnets to generate a magnetic field, these generators eliminate the need for external electromagnets, making them simpler and more efficient than traditional generators. Whether in wind turbines, small-scale hydroelectric systems, backup power sources, or even electric vehicles, PMGs provide a compact, low-maintenance, and highly effective solution for modern power generation needs.
As renewable energy systems continue to grow in importance, the role of PMGs is only set to increase. Their advantages in efficiency, durability, and compactness make them an essential component in the move toward cleaner and more sustainable energy systems.
