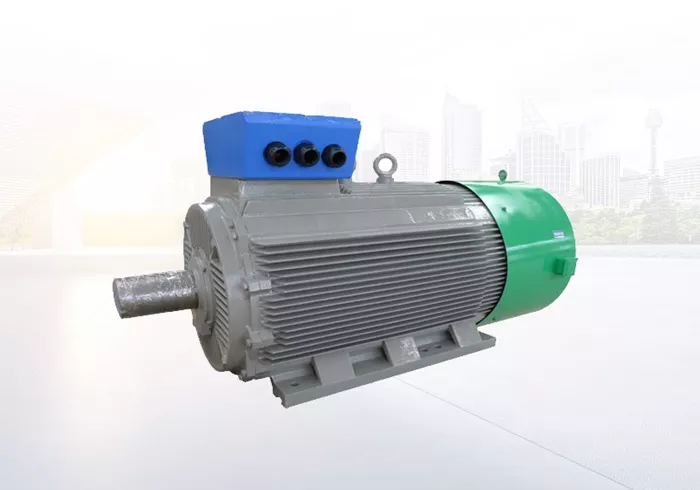

A Permanent Magnet Generator (PMG) is a type of electrical generator that uses permanent magnets to generate electricity. These magnets are designed to produce a magnetic field without requiring an external power supply or electrical current. PMGs are popular in various applications due to their simplicity, reliability, and efficiency.
In this article, we will explore the working principles of a permanent magnet generator, the key components, its benefits, and the many applications it is used in. Understanding how a PMG works can help you determine whether it’s the right solution for your energy needs.
What is a Permanent Magnet Generator?
A permanent magnet generator (PMG) is a device that converts mechanical energy into electrical energy by utilizing the magnetic fields of permanent magnets. Unlike traditional generators that require an electromagnet to produce the magnetic field, PMGs rely on permanent magnets to create a constant magnetic field.
The key component in a PMG is the permanent magnet rotor, which rotates within the stator. The stator contains coils of wire that are cut by the magnetic field produced by the rotating rotor, inducing an electrical current.
Key Components of a Permanent Magnet Generator
To fully understand how a PMG works, let’s take a look at its key components:
Rotor
The rotor is the rotating part of the generator, consisting of permanent magnets. These magnets are arranged in a way that produces a consistent magnetic field as they rotate. The rotor is typically connected to a mechanical system, such as a wind turbine, engine, or waterwheel, that provides rotational movement.
Stator
The stator is the stationary part of the generator. It consists of copper coils or windings arranged in a specific pattern. When the rotor’s magnetic field passes through these coils, it induces an electrical current due to the principle of electromagnetic induction.
Bearings
Bearings support the rotor and allow it to rotate smoothly within the stator. They reduce friction and help in maintaining the efficiency of the generator by ensuring the rotor spins without resistance.
Shaft
The shaft connects the rotor to the mechanical source of motion. It transfers mechanical energy from the engine, turbine, or any other source to the rotor, enabling it to spin and generate electricity.
Housing
The housing of a PMG protects the internal components of the generator. It is typically made of durable materials that can withstand harsh environmental conditions, making the PMG suitable for various industrial and outdoor applications.
How Does a Permanent Magnet Generator Work?
Understanding how a permanent magnet generator works requires familiarity with the electromagnetic induction principle. When the rotor (which contains permanent magnets) rotates, the magnetic field of the magnets changes relative to the stator. This motion induces an electrical current in the stator coils.
Step-by-Step Process
Mechanical Energy Input: A mechanical source (such as a wind turbine, engine, or water wheel) is used to rotate the rotor. This motion provides the mechanical energy necessary for the generator.
Magnetic Field Rotation: As the rotor spins, the permanent magnets mounted on it create a rotating magnetic field. The rotation of the magnets is crucial, as it generates a changing magnetic field.
Electromagnetic Induction: According to Faraday’s Law of Induction, when a changing magnetic field interacts with the stator coils, it induces an electrical current. This current flows through the stator windings, producing electricity.
Electricity Output: The induced current can then be extracted from the generator and used to power electrical devices. The output current is usually alternating current (AC), though it can be converted to direct current (DC) if needed.
Types of Permanent Magnet Generators
There are different types of PMGs depending on their design and application:
Synchronous PMG
In a synchronous PMG, the rotor’s speed is synchronized with the frequency of the electrical output. The rotor rotates at a constant speed that is directly related to the AC frequency generated by the stator.
Asynchronous PMG
An asynchronous PMG, also known as an induction generator, does not require synchronization between the rotor speed and the electrical output. This type of generator is often used in wind energy systems, where the rotor speed can vary depending on wind conditions.
Advantages of Permanent Magnet Generators
Permanent magnet generators offer numerous benefits that make them suitable for various applications.
Here are some of the key advantages:
1. High Efficiency
PMGs are highly efficient due to their use of permanent magnets. Unlike conventional generators that require external power to create a magnetic field, PMGs eliminate the need for an additional energy source, resulting in less energy loss.
2. Compact Design
The absence of external magnetic field coils makes PMGs more compact and lightweight compared to traditional generators. This makes them ideal for applications where space is limited.
3. Low Maintenance
Since PMGs do not require brushes, slip rings, or external excitation systems, they have fewer moving parts that wear out over time. This reduces the maintenance requirements and extends the lifespan of the generator.
4. Reliability
PMG systems are highly reliable, with a long operational life. Their solid-state design and fewer moving parts make them less prone to mechanical failure.
5. Cost-Effective
Due to their high efficiency and low maintenance costs, PMGs can be more cost-effective in the long run, especially for off-grid or remote applications where maintenance might be expensive or difficult.
6. Environmental Benefits
Permanent magnet generators are environmentally friendly. Since they do not require fuel to generate electricity, they produce no emissions, making them an excellent choice for renewable energy applications like wind and hydro power.
Disadvantages of Permanent Magnet Generators
Despite their many advantages, PMGs also have a few drawbacks.
Some of the challenges include:
1. High Initial Cost
The initial cost of a PMG can be higher compared to traditional generators. This is due to the cost of high-quality permanent magnets and the precision required in their design and manufacturing.
2. Limited Power Output
PMG systems are typically best suited for low to medium power applications. While larger PMGs are available, their power output can still be limited when compared to traditional generators that use electromagnets.
3. Temperature Sensitivity
Permanent magnets can lose their magnetism at high temperatures. This can limit the operational environment of a PMG, making it unsuitable for very high-temperature settings unless special materials are used.
Applications of Permanent Magnet Generators
PMG systems are used in a wide range of applications, both in residential and industrial settings.
Some of the most common uses include:
1. Wind Power Systems
One of the most prominent applications of PMGs is in wind turbines. The high efficiency and low maintenance of PMGs make them ideal for converting the mechanical energy from wind into electrical energy.
2. Hydropower Systems
In hydropower plants, PMGs are used to convert the energy from flowing water into electricity. They offer significant benefits in small-scale hydropower systems, where space and maintenance considerations are crucial.
3. Backup Power
PMG systems are increasingly being used in backup power applications for homes and businesses. Their reliability, efficiency, and compact design make them suitable for providing electricity during power outages.
4. Automotive and Marine Applications
PMG systems are used in automobiles and marine applications for power generation. They help in converting mechanical energy into electricity to power systems such as lighting, entertainment, and propulsion.
5. Portable Power Generators
Portable PMGs are popular for use in off-grid and remote locations where electricity is needed but not available from traditional power sources. They are often used in emergency power supplies and camping equipment.
Conclusion
Permanent Magnet Generators (PMGs) are an efficient, reliable, and cost-effective way to generate electricity. Their simple design, which relies on permanent magnets rather than an electromagnet, makes them ideal for a variety of applications, from wind turbines to backup power systems. While they do have some limitations, such as higher initial costs and temperature sensitivity, the advantages of PMGs make them a compelling choice for many energy systems.
By understanding how PMGs work and their potential uses, you can better assess their suitability for your energy needs. Whether you’re looking for a generator for a renewable energy project or a backup power solution, a permanent magnet generator could provide the solution you’re looking for.
