Thread milling is an advanced machining technique used in the production of threaded holes in various materials. It provides several advantages over traditional tapping methods. As industries strive for greater precision and efficiency, thread milling has gained significant attention for its numerous benefits. This article will explore the advantages of thread milling, compare it to other techniques, and explain how it plays a crucial role in enhancing the performance and cost-effectiveness of machining processes.
Introduction to Thread Milling

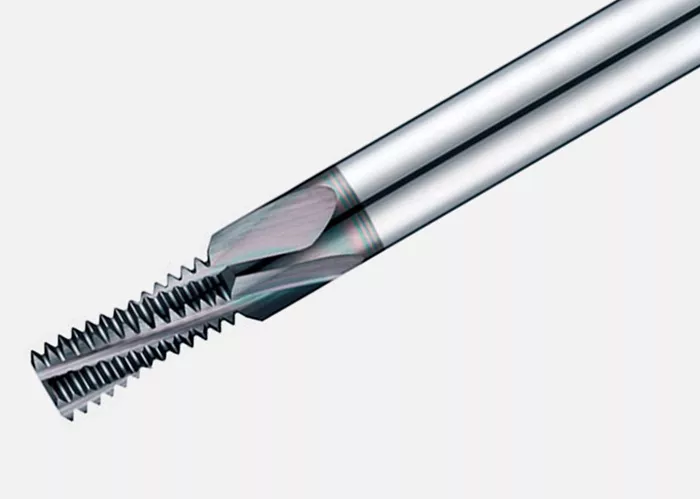

Thread milling is a method of cutting threads using a rotating tool with multiple flutes. It is commonly used in CNC (computer numerical control) machines to create precise internal and external threads. Unlike traditional tapping, thread milling allows for more flexibility and precision, making it ideal for complex or high-tolerance applications.
In thread milling, the tool moves in a helical path while rotating. This motion creates the desired thread profile in the workpiece. The ability to adjust the tool’s path ensures that the threads are accurately formed without causing excessive stress on the machine or the material.
Key Benefits of Thread Milling
1. Flexibility in Thread Sizes and Profiles
One of the biggest advantages of thread milling is the flexibility it offers in terms of thread size and profile. With a single tool, machinists can cut a wide range of thread sizes, from fine threads to coarse ones. This versatility allows manufacturers to reduce tooling costs, as only a few thread mills are needed to produce various types of threads.
Thread milling also enables the creation of threads with different profiles. Whether the thread requires a triangular, square, or custom shape, thread milling can handle it all with precision. This makes it suitable for industries with complex thread requirements, such as aerospace and automotive manufacturing.
2. High Precision and Quality
Thread milling provides superior precision compared to other methods, particularly tapping. The process allows for tighter control over the thread’s dimensions, such as pitch diameter, thread depth, and lead angle. This results in threads that meet stringent quality standards.
Because thread milling uses multiple cutting edges on the tool, it distributes the cutting load evenly. This reduces the chances of tool wear and breakage, ensuring consistent thread quality. Moreover, the toolpath can be adjusted to correct any imperfections, which is difficult to achieve with tapping alone.
3. Ability to Work with Harder Materials
Thread milling is ideal for machining materials that are tough or difficult to tap, such as stainless steel, titanium, and other high-strength alloys. These materials can cause tapping tools to break or wear down quickly. In contrast, thread milling tools are more robust and can withstand the stresses of cutting through these hard materials.
In addition, thread milling reduces the risk of tool binding and jamming, which is common in tapping when working with challenging materials. This improves the overall efficiency and safety of the machining process.
4. Increased Tool Life and Reduced Tool Wear
Thread milling tools tend to last longer than tapping tools, especially when working with harder materials. The cutting edges are not subjected to the same high levels of stress, which reduces the likelihood of premature tool wear or breakage.
Moreover, the ability to adjust the feed rates and cutting parameters in thread milling further extends tool life. By optimizing these settings, manufacturers can significantly reduce tool wear and operating costs over time.
5. Enhanced Chip Removal and Cooling
Thread milling typically produces better chip removal compared to tapping. The continuous movement of the tool and the controlled cutting action allow for more efficient chip evacuation. This reduces the chances of chips accumulating in the hole and causing problems, such as thread damage or tool clogging.
Additionally, thread milling allows for better cooling due to the tool’s movement. This helps in dissipating heat more effectively, which is crucial when cutting through heat-sensitive materials. It also reduces the likelihood of tool overheating, ensuring more consistent machining performance.
6. Reduced Risk of Thread Damage
Tapping involves a higher risk of thread damage due to the forces exerted during the tapping process. This is particularly true when tapping deep holes or holes with uneven surfaces. Thread milling, on the other hand, eliminates many of these risks by using a more controlled and gradual cutting process. This results in threads that are less likely to suffer from issues like thread tearing, galling, or deformation.
Furthermore, thread milling can accommodate for minor misalignments or imperfections in the workpiece. This ability to adjust during the cutting process ensures that the threads are cut cleanly and accurately, even in challenging conditions.
7. Capability for Blind Holes and Deep Threads
Thread milling is especially beneficial when creating threads in blind holes or deep threads. In tapping, the depth of the hole can limit the effectiveness of the operation, leading to incomplete threads or poor thread quality. Thread milling, however, allows for precise control over the cutting depth, ensuring that deep threads are accurately formed.
The helical cutting motion of thread milling also makes it ideal for blind holes. Tapping in blind holes can be tricky, as the tool may become stuck or fail to cut the thread properly. Thread milling mitigates these issues, ensuring high-quality threads in even the most difficult-to-reach areas.
8. Improved Process Efficiency and Cycle Time
While thread milling may initially seem like a more time-consuming process than tapping, it can ultimately improve cycle times in certain applications. Thread milling can be performed in one or two passes, depending on the material and thread specifications. This reduces the number of tool changes and operations required, improving overall machining efficiency.
Moreover, the ability to adjust feed rates and cutting parameters optimally can further reduce cycle time without sacrificing thread quality. This makes thread milling an excellent choice for high-volume production, where minimizing downtime and maximizing throughput are essential.
9. Reduced Setup Time and Improved Flexibility
Thread milling machines are typically more versatile and require less setup time than tapping machines. They can be used for a variety of operations, such as drilling, boring, and even milling, in addition to thread cutting. This versatility makes thread milling machines highly efficient in multi-operation setups, reducing the need for specialized equipment.
The flexibility of thread milling allows manufacturers to quickly switch between different thread sizes and profiles without needing extensive retooling. This quick-change capability is particularly valuable in industries that require rapid prototyping or custom thread designs.
10. Environmental Benefits
Thread milling can also offer environmental benefits. Since the process generates fewer chips and uses more efficient cooling methods, it reduces the amount of waste produced during machining. The longer tool life associated with thread milling also reduces the frequency of tool replacements, contributing to a decrease in manufacturing waste.
Additionally, the ability to optimize cutting parameters helps to reduce energy consumption during the machining process. This makes thread milling a more sustainable option compared to traditional methods, which often generate higher levels of waste and energy usage.
Conclusion
Thread milling offers a wide array of benefits that make it a superior choice for many machining applications. From increased flexibility and precision to longer tool life and improved process efficiency, thread milling stands out as a modern solution for creating high-quality threads. Its ability to handle tough materials, create deep threads, and produce accurate results in both blind and through holes positions thread milling as an essential technique in advanced manufacturing.
For industries looking to improve their machining processes, thread milling provides a versatile, efficient, and cost-effective method to achieve high-quality threads while minimizing operational challenges.
